Agent-to-Agent Communication (A2A)
Agent-to-Agent Communication (A2A)
Agent-to-Agent Communication (A2A)
As large language models evolve from isolated assistants into collaborative networks of specialized agents, the question of how agents talk to each other becomes as important as how they reason internally. This section covers the protocols, patterns, and engineering practices that enable multiagent systems to coordinate, delegate, and collectively solve problems that no single agent could handle alone.
23.1 Motivation: Why Agents Must Communicate
The Specialization Imperative
A single generalist agent faces a fundamental tension: breadth of knowledge versus depth of capability. Real-world tasks--legal document review, multi-step scientific research, enterprise software development--demand both. Agent-to-agent communication resolves this tension by allowing a network of specialists to collaborate, each contributing its strengths while delegating weaknesses.
Several forces drive the need for structured inter-agent communication:
Cognitive Load and Context Limits. Every LLM operates within a finite context window. Complex workflows--spanning hundreds of documents, tool calls, and reasoning steps--quickly exceed what a single agent can hold in memory. By decomposing tasks across agents, each agent operates within a manageable context, and the orchestrating agent maintains only high-level state.
Specialization and Expertise. Different agents may be fine-tuned, prompted, or tool-equipped for specific domains: a CodeAgent with access to compilers and test runners, a LegalAgent with access to case-law databases, a DataAgent with statistical libraries. Routing subtasks to the right specialist improves both quality and efficiency.
Parallelism and Throughput. Independent subtasks can be dispatched to multiple agents simultaneously. A research orchestrator might fan out literature searches across five specialized agents in parallel, then synthesize their results--dramatically reducing wall-clock time.
Fault Isolation and Resilience. When one agent fails, a well-designed multi-agent system can retry with a different agent, fall back to a simpler approach, or escalate to a human--without collapsing the entire workflow.
1. Discoverability: Agents must be able to find other agents and understand their capabilities.
2. Interoperability: Agents built by different teams or vendors must speak a common protocol.
3. Asynchrony: Long-running tasks must not block the caller; results arrive via callbacks or polling.
4. Security: Agents must authenticate each other and enforce authorization boundaries.
5. Observability: Every message exchange must be traceable for debugging and auditing.
23.2 The Google A2A Protocol
In April 2025, Google (with contributions from over 50 technology partners) released the Agentto-Agent (A2A) Protocol [372], an open specification for interoperable communication between AI agents. The protocol was subsequently donated to the Linux Foundation and has grown to over 150 supporting organizations as of 2026. A2A is designed around a set of core principles that distinguish it from earlier ad-hoc approaches.
23.2.1 Design Philosophy
The A2A specification articulates five guiding principles (adapted from the official spec [372], §1.2):
A2A Design Principles
Opaque execution Calling agents never inspect the internals of a remote agent--they interact solely through the declared interface. Whether the target is GPT-4, Gemini, or a rule-based system is irrelevant to the protocol, enabling genuinely heterogeneous agent ecosystems. Enterprise readiness Authentication (OAuth 2.0, API keys, JWT), audit logging, and regulatory compliance are not afterthoughts--they are integrated at the protocol level from the outset. Modality agnosticism A single message may combine text, binary files, and structured JSON payloads, accommodating agents that operate on images, audio, code, or documents without protocol extensions. Simplicity via existing standards Rather than inventing new transports, A2A reuses HTTP/HTTPS with JSON-RPC 2.0 messages, Server-Sent Events (SSE) for streaming, and gRPC as an alternative binding--technologies that every infrastructure team already operates. Async-first task model Long-running operations are the norm, not the exception. Push notifications and polling are both first-class mechanisms, so callers never need to hold open a connection for hours.
23.2.2 Agent Cards
The foundation of A2A discoverability is the Agent Card--a machine-readable JSON manifest hosted at a well-known endpoint (/.well-known/agent.json). It advertises what the agent can do, how to authenticate, and where to send tasks--analogous to an OpenAPI spec but for autonomous agents rather than REST endpoints.
Agent Card Structure
# Agent Card served at https :// agent.example.com/.well -known/agent.json agent_card = {
"name": " DataAnalysisAgent ", "description": "Analyzes structured datasets , produces statistical summaries , "
"streaming": True , " pushNotifications ": True , " stateTransitionHistory ": True }, " authentication": {
"schemes": ["Bearer", "ApiKey"] }, "skills": [
{
"id": "statistical -analysis", "name": "Statistical Analysis", "description": "Compute descriptive statistics , run hypothesis tests , "
"fit regression models on tabular data.", "tags": ["statistics", "data", "analysis", "regression"], "examples": [
"What is the correlation between columns A and B?", "Run a t-test comparing these two groups.", "Fit a linear regression predicting sales from ad spend." ], "inputModes": ["text", "data"], "outputModes": ["text", "data", "file"] }, {
"id": "visualization", "name": "Data Visualization ", "description": "Generate charts , plots , and dashboards from data.", "tags": ["charts", "plots", " visualization ", "dashboard"], "examples": [
"Create a bar chart of monthly revenue.", "Plot the distribution of customer ages." ], "inputModes": ["text", "data"], "outputModes": ["file", "text"] } ], " defaultInputModes ": ["text"], " defaultOutputModes ": ["text"] }
Agent Cards enable capability-based routing: an orchestrator agent can fetch cards from a registry, semantically match a subtask to the most appropriate agent, and dispatch accordingly--all without hardcoded routing logic.
23.2.3 Task Lifecycle
23.2.4 Streaming via Server-Sent Events
For tasks that produce incremental output (e.g., a long report being written, a code file being generated), A2A uses Server-Sent Events (SSE). The client opens a persistent HTTP connection and receives a stream of JSON events:
SSE Event Stream Example
# Each SSE event carries a TaskStatusUpdateEvent or TaskArtifactUpdateEvent # Example stream for a "write a research report" task:
# Event 1: status update data: {
"id": "task -abc123", "status": {"state": "working"}, "final": false }
# Event 2: partial artifact (streaming text) data: {
"id": "task -abc123", "artifact": {
"parts": [{"type": "text", "text": "## Introduction\n\nRecent advances in ..."}],
"index": 0, "append": false , "lastChunk": false }, "final": false }
# Event 3: more text appended data: {
"id": "task -abc123", "artifact": {
"parts": [{"type": "text", "text": " reinforcement learning have shown ..." }],
"index": 0, "append": true , # append to existing artifact "lastChunk": false }, "final": false }
# Final event: task complete data: {
"id": "task -abc123", "status": {"state": "completed"}, "final": true }
23.2.5 Push Notifications for Long-Running Tasks
# Client registers a push notification endpoint when submitting the task task_request = {
"id": "task -xyz789", "message": {
"role": "user", "parts": [{"type": "text", "text": "Analyze Q3 sales data and produce a report."}]
}, " pushNotification ": {
"url": "https ://my -orchestrator.example.com/webhooks/a2a", "token": "secret -hmac -token -for - verification", " authentication": {
"schemes": ["Bearer"], "credentials": " eyJhbGciOiJIUzI1NiJ9 ..." } } } # The server will POST TaskStatusUpdateEvent objects to the webhook URL # as the task transitions through states.
23.2.6 Message Format
A2A messages consist of a role (user or agent) plus a list of typed parts (text, file, or structured data). The full message schema, multi-modal examples, and context-passing guidelines are covered in Section 23.5.
23.2.7 Authentication and Authorization
A2A supports multiple authentication schemes, declared in the Agent Card and enforced per-request:
• Bearer tokens (JWT/OAuth 2.0): Standard for enterprise deployments; tokens carry scopes that limit what the calling agent is permitted to request.
• API keys: Simpler scheme for internal or trusted environments.
• Mutual TLS (mTLS): Certificate-based authentication for high-security deployments.
• OpenID Connect: Federated identity, enabling cross-organization agent communication.
Authorization Scope Enforcement
An agent receiving a task must verify not only who is calling (authentication) but what they are allowed to request (authorization). A ReportingAgent might accept read-only data queries from any authenticated agent, but restrict write operations to agents holding a specific OAuth scope. Failing to enforce this creates privilege escalation vulnerabilities in multi-agent systems.
23.3 Communication Patterns
Multi-agent systems employ a variety of communication patterns depending on the nature of the task, latency requirements, and the number of agents involved.
23.3.1 Request-Response
The simplest pattern: Agent A sends a task to Agent B and waits for a complete response. Suitable for short, well-defined subtasks where the result is needed before proceeding.
23.3.2 Streaming
An orchestrator asks a WritingAgent to draft a 10-page technical document. Rather than waiting 2 minutes for the complete document, the orchestrator streams each section as it is written, allowing a ReviewAgent to begin reviewing early sections while later sections are still being generated--a pipeline that reduces total latency by 40-60%.
23.3.3 Multi-Turn Interaction
Some tasks require iterative refinement. The agent enters input-required state, the orchestrator provides clarification, and the task resumes. This mirrors human collaborative workflows: draft → feedback →revision.
# Multi -turn: orchestrator handles input -required state async def run_multiturn_task (client , initial_message ): task = await client.send_task(message= initial_message )
while task.status.state not in ("completed", "failed", "canceled"): if task.status.state == "input -required":
# Agent needs clarification clarification_needed = task.status.message print(f"Agent asks: { clarification_needed }")
# Orchestrator generates or forwards a clarifying response user_reply = await get_clarification ( clarification_needed )
# Send the reply to continue the task task = await client.send_task( task_id=task.id , message ={"role": "user",
"parts": [{"type": "text", "text": user_reply }]} ) else:
# Still working --- poll after a delay await asyncio.sleep (2) task = await client.get_task(task.id)
return task
23.3.4 Broadcast
An orchestrator sends the same message to multiple agents simultaneously--useful for announcements, distributing shared context, or triggering parallel independent workflows.
23.3.5 Publish-Subscribe (Pub-Sub)
Agents subscribe to event channels (e.g., new-document-uploaded, model-retrained). When an event fires, all subscribed agents are notified. This decouples producers from consumers and enables reactive, event-driven architectures.
23.3.6 Negotiation
Two agents exchange proposals and counter-proposals to reach agreement on a plan, resource allocation, or approach. Common in multi-agent planning systems where agents have different objectives or constraints.
Negotiation Pattern
23.3.7 Auction-Based Task Allocation
The orchestrator announces a task with requirements; candidate agents submit bids (estimated completion time, confidence, cost); the orchestrator awards the task to the winning bidder. This enables dynamic, market-based load balancing across a pool of agents.
Table 23.1: Summary of A2A communication patterns.
Pattern Latency Best For
Request-Response Low Short, well-defined subtasks Streaming Low (first token) Long-form generation, real-time UI Multi-Turn Medium Ambiguous tasks requiring clarification Broadcast Low Shared context distribution Pub-Sub Variable Event-driven reactive workflows Negotiation Medium-High Resource-constrained planning Auction Medium Dynamic load balancing
23.4 Agent Discovery and Routing
Before an agent can communicate with another, it must find it. Agent discovery is the process of locating agents that can handle a given task.
23.4.1 Agent Registries
An agent registry is a directory service that indexes Agent Cards and provides search and lookup APIs. Two deployment models exist: Centralized Registry A single authoritative registry (e.g., an enterprise service catalog) indexes all agents. Simple to operate but creates a single point of failure and may not scale to cross-organization deployments. Federated Registry Multiple registries, each authoritative for a domain or organization, with cross-registry search protocols. More resilient and privacy-preserving, but requires standardized federation protocols.
23.4.2 Capability-Based Routing
Rather than hardcoding agent URLs, orchestrators perform capability-based routing: they query the registry for agents matching required skills, then select the best match.
class AgentRouter: """Routes tasks to agents based on capability matching."""
def __init__(self , registry_url : str): self.registry_url = registry_url self._cache: dict[str , list[AgentCard ]] = {}
async def find_agents(self , required_skill : str ,
tags: list[str] | None = None) -> list[AgentCard ]: """Query registry for agents with the required skill.""" params = {"skill": required_skill } if tags:
params["tags"] = ",".join(tags) async with httpx.AsyncClient () as client: resp = await client.get(f"{self.registry_url }/ agents", params=params) return [AgentCard (** card) for card in resp.json ()["agents"]]
# Fetch all registered agents all_agents = await self.find_agents( required_skill ="*")
# Score each agent by cosine similarity of task to agent description scored = [] for agent in all_agents:
agent_embedding = await embed(agent.description) score = cosine_similarity (task_embedding , agent_embedding ) scored.append ((score , agent))
# Return the highest -scoring agent scored.sort(key=lambda x: x[0], reverse=True) return scored [0][1]
23.4.3 Load Balancing Across Equivalent Agents
When multiple agents offer the same capability, the router must distribute load. Common strategies:
• Round-robin: Distribute tasks evenly across all available agents.
• Least-loaded: Route to the agent with the fewest active tasks (requires health/metrics endpoints).
• Latency-aware: Route to the agent with the lowest recent response time.
• Affinity-based: Route related tasks to the same agent to exploit cached context.
23.4.4 Version Management and Compatibility
Agent Cards include a version field. Orchestrators should specify minimum version requirements and handle graceful degradation when only older versions are available. Semantic versioning [373] (MAJOR.MINOR.PATCH) is recommended: breaking interface changes increment MAJOR, new capabilities increment MINOR.
Version Skew in Long-Running Systems
In production multi-agent systems, different agents may be updated at different times, creating version skew. An orchestrator compiled against Agent Card v2.1 may encounter agents still running v1.3. Always implement backward-compatible message handling and test cross-version scenarios explicitly.
23.5 Message Formats and Schemas
23.5.1 Structured vs. Unstructured Messages
A2A supports a spectrum from fully unstructured (plain text) to fully structured (typed JSON schemas). The right choice depends on the agents involved:
23.5.2 Multi-Modal Messages
Message Type Advantages Disadvantages
Plain text Flexible, human-readable, easy to generate Hard to parse reliably, no schema validation
Structured JSON Machine-parseable, validatable, typed Requires schema agreement, less flexible
Hybrid (text + data) Human-readable intent + machine-parseable payload More complex to construct and parse
Table 23.3: A2A message part types (wire format uses "type": "text"|"file"|"data").
Part Type Fields Use Case
TextPart text: string Natural language instructions, responses FilePart mimeType, uri or bytes Documents, images, audio, code files DataPart data: object Structured JSON (tool results, schemas)
Multi-Modal A2A Message: Data Analysis
# A message combining text instructions with a data payload and a file message = {
"role": "user", "parts": [
{
"type": "text", "text": "Analyze the attached CSV and the schema below. " "Identify anomalies and produce a summary report." }, {
"type": "file", "mimeType": "text/csv", "uri": "https :// storage.example.com/data/sales_q3.csv" }, {
"type": "data", "data": {
"schema": {
"columns": ["date", "region", "product", "revenue", "units" ],
"types": ["date", "string", "string", "float", "int"] }, " expectedRowCount ": 15000 , " anomalyThreshold ": 3.0 # z-score threshold } } ] }
Multi-Modal A2A Message: Image Analysis
# Multi -modal message: text + image + structured data multimodal_message = {
"role": "user", "parts": [
{"type": "text",
"text": "Describe what is wrong with this chart and suggest fixes."}, {"type": "file",
"mimeType": "image/png", "bytes": base64.b64encode( chart_image_bytes ).decode ()}, {"type": "data",
"data": {
"missing error bars"] }} ] }
23.5.3 Context Passing: What to Share vs. What to Keep Private
A critical design decision in multi-agent systems is context scoping: how much of the conversation history and internal state to pass to a sub-agent.
Context Scoping Principles
Minimal Context Pass only what the sub-agent needs to complete its task. Reduces token usage, latency, and the risk of leaking sensitive information. Summarized Context Instead of passing raw conversation history, pass a structured summary: goals, constraints, decisions made, and relevant facts. Private State Internal reasoning, intermediate drafts, and user PII should generally not be forwarded to subagents unless explicitly required. Correlation IDs Always pass a correlationId so that sub-agent actions can be traced back to the originating workflow in logs and audit trails.
23.5.4 Conversation Threading and Correlation IDs
In complex workflows, many tasks may be in flight simultaneously. Correlation IDs link related tasks across agents:
import uuid
class WorkflowContext : """Carries correlation metadata through a multi -agent workflow."""
def __init__(self , workflow_id: str | None = None): self.workflow_id = workflow_id or str(uuid.uuid4 ()) self.span_id = str(uuid.uuid4 ()) self.parent_span_id : str | None = None
def child_context(self) -> " WorkflowContext ": """Create a child context for a sub -task.""" child = WorkflowContext (workflow_id=self.workflow_id) child. parent_span_id = self.span_id return child
def to_metadata(self) -> dict: return {
"x-workflow -id": self.workflow_id , "x-span -id": self.span_id , "x-parent -span -id": self. parent_span_id }
23.6 Coordination Protocols
Beyond point-to-point communication, multi-agent systems benefit from higher-level coordination protocols--structured interaction patterns that enable collective decision-making and problemsolving.
23.6.1 Contract Net Protocol
The Contract Net Protocol (CNP) [374] is a classic multi-agent coordination mechanism adapted for LLM-based systems:
1. Announcement: The manager agent broadcasts a task announcement to all potential contractor agents, including task requirements and evaluation criteria.
2. Bidding: Contractor agents evaluate the task against their capabilities and submit bids containing estimated completion time, confidence, and resource requirements.
3. Award: The manager selects the winning bid (or multiple bids for parallel subtasks) and awards the contract.
4. Execution and Reporting: The contractor executes the task and reports results back to the manager.
Contract Net Protocol Implementation
import dataclasses
class ContractNetManager : """Implements the Contract Net Protocol for task allocation."""
async def allocate_task(self , task: Task ,
candidate_agents : list[AgentCard ]) -> AgentCard: # Phase 1: Announce task to all candidates announcement = {
"type": "task -announcement", "task": dataclasses.asdict(task), "deadline": (datetime.now(timezone.utc) + timedelta(seconds =10)). isoformat (),
" evaluationCriteria ": ["confidence", " estimatedTime ", "cost"] }
# Phase 2: Collect bids bids = await asyncio.gather (*[ self._request_bid(agent , announcement ) for agent in candidate_agents ], return_exceptions =True)
valid_bids = [(agent , bid) for agent , bid in zip(candidate_agents , bids )
if not isinstance(bid , Exception) and bid is not None]
if not valid_bids: raise RuntimeError(f"No agents bid on task {task.id}")
# Phase 3: Award to best bidder (highest confidence , lowest time) def score_bid(agent_bid): _, bid = agent_bid
winner_agent , winning_bid = max(valid_bids , key=score_bid)
# Notify winner and losers await self. _award_contract (winner_agent , task) await asyncio.gather (*[ self._reject_bid(agent , task.id) for agent , _ in valid_bids if agent != winner_agent ])
return winner_agent
async def _request_bid(self , agent: AgentCard ,
announcement : dict) -> dict | None: """Ask an agent to bid on a task.""" try:
result = await self.client.send_task( agent_url=agent.url , message ={"role": "user",
"parts": [{"type": "data", "data": announcement }]} ) return result.artifacts [0]. parts [0]["data"] except Exception: return None
23.6.2 Blackboard Systems
A blackboard system [321] provides a shared workspace (the "blackboard") where agents post partial solutions, observations, and hypotheses. Other agents monitor the blackboard and contribute when they can add value--an opportunistic problem-solving approach. Blackboard systems are well-suited to problems where the solution path is not known in advance and different agents may contribute at different stages--such as scientific hypothesis generation, complex debugging, or multi-source intelligence analysis.
23.6.3 Consensus Protocols
When multiple agents must agree on a decision (e.g., which plan to execute, whether a result is correct), consensus protocols provide structured voting mechanisms: Simple Majority Voting Each agent votes; the option with > 50% of votes wins. Fast but vulnerable to correlated errors if agents share the same base model. Weighted Voting Votes are weighted by agent confidence or historical accuracy. More robust but requires calibrated confidence estimates. Quorum-Based A decision requires agreement from at least k of n agents. Provides fault tolerance: up to n −k agents can fail or disagree without blocking. Delphi Method Agents vote, see anonymized results, revise their votes, and repeat until convergence. Reduces anchoring bias and encourages genuine deliberation.
async def quorum_vote(agents: list[AgentCard], question: str ,
counts: dict[str , int] = {} for vote in votes:
if vote in options:
counts[vote] = counts.get(vote , 0) + 1
# Return first option that reaches quorum for option , count in sorted(counts.items (), key=lambda x: -x[1]):
if count >= quorum: return option return None # No quorum reached
23.6.4 Leader Election
In dynamic multi-agent systems, a leader (orchestrator) may need to be elected at runtime--for example, when the original orchestrator fails or when agents self-organize without a pre-assigned coordinator. Classic distributed systems algorithms (Bully, Ring) can be adapted for agent networks, with agents exchanging capability scores or priority tokens to elect the most capable available agent as leader.

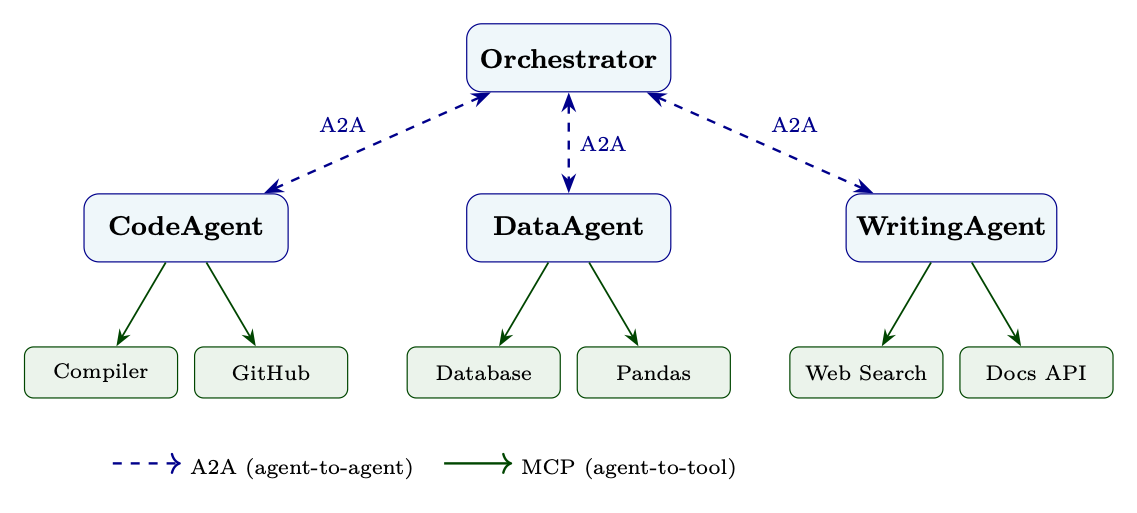

23.7 A2A vs. MCP: Complementary Protocols
A common source of confusion is the relationship between A2A and the Model Context Protocol (MCP) [335]. These protocols are complementary, not competing:
The Core Distinction
• MCP is the vertical protocol: it extends an agent downward into the world of databases, APIs, file systems, and code executors. Only the agent reasons; MCP endpoints are deterministic services.
• A2A is the horizontal protocol: it links one reasoning agent to another. Both sides are intelligent actors capable of reasoning, planning, and tool use.
Dimension MCP A2A
Participants Agent ↔Tool/Resource Agent ↔Agent Intelligence One side (agent) is intelligent Both sides are intelligent Statefulness Typically stateless tool calls Stateful tasks with lifecycle Streaming Limited (tool results) First-class SSE streaming Discovery Tool manifests Agent Cards Auth model Server-controlled Mutual, OAuth 2.0 Typical latency Milliseconds Seconds to minutes Use case "Search the web", "Run SQL" "Delegate to specialist"
23.7.1 When to Use Which
• Use MCP when the remote endpoint is a deterministic function: a database query, an API call, a code execution sandbox. The agent controls the interaction entirely.
• Use A2A when the remote endpoint needs to reason about the request: interpret ambiguous instructions, make judgment calls, use its own tools, or engage in multi-turn dialogue.
In production multi-agent systems, A2A and MCP work together at different layers: A2A handles inter-agent delegation and coordination (horizontal communication between peers), while MCP handles each agent's connection to its tools and data sources (vertical integration with capabilities). This separation of concerns is key to building scalable agentic architectures.
Figure 23.1: Combined A2A + MCP architecture. The orchestrator delegates to specialist agents via A2A; each agent accesses its tools via MCP servers.
• A2A for delegation: When an agent needs capabilities it doesn't have, it delegates to another agent via A2A task messages. Each agent is a self-contained service with its own Agent Card.
• MCP for tool access: Each agent connects to its tools through MCP servers. This means tools are never exposed directly to other agents -- only through the owning agent's interface.
• Separation of trust boundaries: The orchestrator trusts specialist agents (verified via A2A authentication). Each specialist trusts its own MCP servers (local or authenticated). No transitive tool access.
• Independent scaling: Code-heavy workloads can scale CodeAgent instances; data workloads scale DataAgent. The orchestrator remains lightweight.
23.8 Security and Trust in Multi-Agent Systems
Multi-agent systems introduce unique security challenges. When Agent A delegates to Agent B, which delegates to Agent C, the chain of trust must be carefully managed.
23.8.1 Agent Identity Verification
Each agent must have a verifiable identity. Options include:
• JWT tokens [375] signed by a trusted identity provider, carrying the agent's ID, issuer, and expiry. Verified by the receiving agent using the provider's public key.
• mTLS certificates [376] issued by an internal CA, providing both authentication and transport encryption.
• All A2A communication should occur over TLS 1.3 [378] to prevent eavesdropping and man-in-the-middle attacks.
• For sensitive payloads, end-to-end encryption (e.g., JWE) ensures that intermediate infrastructure (load balancers, proxies) cannot read message content.
• Message signing (JWS) provides non-repudiation: the receiving agent can prove that a specific message came from a specific sender.
23.8.3 Authorization Scopes
Not every agent should be able to ask every other agent to do anything. OAuth 2.0 authorization scopes [379] define the boundaries:
# Example OAuth 2.0 scopes for a DataAgent SCOPES = {
"data:read": "Read data from connected databases", "data:write": "Write or modify data in connected databases", "data:export": "Export data to external systems", "analysis:run": "Execute statistical analyses", "analysis:schedule":"Schedule recurring analyses", "admin:config": "Modify agent configuration " }
# A ReportingAgent might hold only: data:read , analysis:run # An ETL pipeline agent might hold: data:read , data:write , data:export # Only a human admin holds: admin:config
class A2AServer: def verify_authorization (self , token: str , required_scope : str) -> bool: """Verify that the calling agent holds the required scope.""" claims = jwt.decode(token , self.public_key , algorithms =["RS256"]) granted_scopes = claims.get("scope", "").split () if required_scope not in granted_scopes : raise PermissionError ( f"Caller lacks required scope '{ required_scope }'. " f"Granted: { granted_scopes }" ) return True
23.8.4 Audit Trails and Accountability
The Accountability Gap
In a chain of agent delegations, it can become unclear who is responsible for an action. If Agent A asks Agent B to delete a file, and Agent B does so, who is accountable? Every A2A interaction must be logged with: the calling agent's identity, the task description, the authorization token used, the timestamp, and the outcome. This audit trail is essential for incident response, compliance, and debugging.
Every A2A server should emit structured audit logs:
23.9 Implementation Example: Multi-Agent Research Workflow
The following example demonstrates a complete multi-agent research workflow using A2A: an OrchestratorAgent decomposes a research question, delegates to specialist agents, and synthesizes their results.
""" Multi -agent research workflow using A2A protocol. Demonstrates: Agent Cards , A2A client/server , task lifecycle , multi -turn interaction , and agent handoffs. """
import asyncio import json import uuid from collections.abc import AsyncIterator from datetime import datetime , timedelta , timezone
import httpx from fastapi import FastAPI , HTTPException , Request from fastapi.responses import StreamingResponse from pydantic import BaseModel , Field
# -- Data Models --------------------------------------------------------------
class Part(BaseModel): type: str # "text" | "file" | "data" text: str | None = None data: dict | None = None mimeType: str | None = None uri: str | None = None
class Message(BaseModel): role: str # "user" | "agent" parts: list[Part]
class TaskStatus(BaseModel): state: str # submitted | working | input -required | completed | failed
message: str | None = None timestamp: str = Field(
default_factory =lambda: datetime.now(timezone.utc).isoformat () )
class Artifact(BaseModel): parts: list[Part] index: int = 0 append: bool = False lastChunk: bool = True
class Task(BaseModel): id: str status: TaskStatus messages: list[Message] = [] artifacts: list[Artifact] = [] metadata: dict = {}
class A2AClient: """Client for sending tasks to A2A -compliant agents."""
def __init__(self , agent_url: str , auth_token: str): self.agent_url = agent_url.rstrip("/") self.headers = {
"Authorization": f"Bearer {auth_token}", "Content -Type": "application/json" }
async def get_agent_card(self) -> dict: """Fetch the agent 's capability card.""" async with httpx.AsyncClient () as client: resp = await client.get( f"{self.agent_url }/.well -known/agent.json", headers=self.headers ) resp. raise_for_status () return resp.json ()
async def send_task(self , message: Message ,
task_id: str | None = None , metadata: dict | None = None) -> Task: """Submit a task and return the initial task object.""" payload = {
"id": task_id or str(uuid.uuid4 ()), "message": message.model_dump (), "metadata": metadata or {} } async with httpx.AsyncClient () as client: resp = await client.post( f"{self.agent_url }/ tasks/send", json=payload , headers=self.headers , timeout =30.0 ) resp. raise_for_status () return Task (** resp.json ())
async def stream_task(self , message: Message ,
metadata: dict | None = None) -> AsyncIterator [dict ]: """Submit a task and stream SSE events.""" payload = {
"id": str(uuid.uuid4 ()), "message": message.model_dump (), "metadata": metadata or {} } async with httpx.AsyncClient () as client: async with client.stream( "POST", f"{self.agent_url }/ tasks/ sendSubscribe ", json=payload , headers ={** self.headers , "Accept": "text/event -stream"}, timeout =300.0 ) as response:
async for line in response.aiter_lines ():
if line.startswith("data: "):
event_data = json.loads(line [6:]) yield event_data if event_data.get("final"):
break
async def get_task(self , task_id: str) -> Task:
async def wait_for_completion (self , task: Task ,
poll_interval : float = 2.0) -> Task: """Poll until task reaches a terminal state.""" terminal_states = {"completed", "failed", "canceled"} while task.status.state not in terminal_states : await asyncio.sleep(poll_interval ) task = await self.get_task(task.id) return task
# -- A2A Server (FastAPI) -----------------------------------------------------
class ResearchAgent: """ A specialist research agent that searches literature and summarizes findings on a given topic. """
AGENT_CARD = {
"name": "ResearchAgent", "description": "Searches academic literature and synthesizes research findings.",
"url": "https :// research -agent.example.com/a2a", "version": "1.0.0", "capabilities": {
"streaming": True , " pushNotifications ": False , " stateTransitionHistory ": True }, " authentication": {"schemes": ["Bearer"]}, "skills": [{
"id": "literature -search", "name": "Literature Search", "description": "Search and summarize academic papers on a topic.", "tags": ["research", "literature", "academic", "papers"], "examples": [
"Summarize recent papers on transformer attention mechanisms.", "What does the literature say about RLHF for code generation?" ], "inputModes": ["text"], "outputModes": ["text", "data"] }] }
def __init__(self): self.tasks: dict[str , Task] = {} self.app = FastAPI(title=" ResearchAgent A2A Server") self. _register_routes ()
def _register_routes (self): @self.app.get("/.well -known/agent.json") async def agent_card (): return self.AGENT_CARD
@self.app.post("/tasks/send") async def send_task(request: Request): body = await request.json () task = await self. _create_and_run_task (body)
@self.app.post("/tasks/sendSubscribe ") async def send_subscribe(request: Request): body = await request.json () return StreamingResponse ( self._stream_task(body), media_type="text/event -stream" )
@self.app.get("/tasks /{ task_id}") async def get_task(task_id: str): if task_id not in self.tasks: raise HTTPException (status_code =404 , detail="Task not found") return self.tasks[task_id ]. model_dump ()
async def _create_and_run_task (self , body: dict) -> Task: task_id = body.get("id", str(uuid.uuid4 ())) message = Message (** body["message"])
task = Task(
id=task_id , status=TaskStatus(state="submitted"), messages =[ message], metadata=body.get("metadata", {}) ) self.tasks[task_id] = task
# Run asynchronously asyncio.create_task(self._execute_task (task_id)) return task
async def _execute_task(self , task_id: str): task = self.tasks[task_id] task.status = TaskStatus(state="working")
try:
# Extract the research question from the message question = task.messages [0]. parts [0]. text
# Simulate literature search (replace with real search tool) await asyncio.sleep (1) # Simulated latency findings = await self. _search_literature (question)
# Produce artifact task.artifacts = [Artifact(parts =[
Part(type="text", text=findings["summary"]), Part(type="data", data ={"papers": findings["papers"],
"query": question }) ])] task.status = TaskStatus(state="completed")
except Exception as e: task.status = TaskStatus(state="failed", message=str(e))
self.tasks[task_id] = task
async def _search_literature (self , question: str) -> dict: """Placeholder: in production , calls a real search API.""" return {
"summary": f"Based on a search of recent literature regarding " f" '{question}', key findings include: ...", "papers": [
{"title": "Attention Is All You Need", "year": 2017 ,
"relevance": 0.95} , {"title": "RLHF: Training Language Models to Follow Instructions",
async def _stream_task(self , body: dict) -> AsyncIterator [str]: task = await self. _create_and_run_task (body)
# Stream status updates yield f"data: {json.dumps ({'id ': task.id , 'status ': {'state ': 'submitted '}, 'final ': False })}\n\n"
yield f"data: {json.dumps ({'id ': task.id , 'status ': {'state ': 'working '}, 'final ': False })}\n\n"
# Wait for completion while task.status.state not in ("completed", "failed", "canceled"): await asyncio.sleep (0.5) task = self.tasks[task.id]
# Stream the artifact if task.artifacts:
for part in task.artifacts [0]. parts:
event = {
"id": task.id , "artifact": {
"parts": [part.model_dump ()], "index": 0, "append": False , "lastChunk": True }, "final": False } yield f"data: {json.dumps(event)}\n\n"
# Final status yield f"data: {json.dumps ({'id ': task.id , 'status ': task.status.model_dump (), 'final ': True })}\n\n"
# -- Orchestrator: Multi -Agent Workflow ----------------------------------------
class ResearchOrchestrator : """ Orchestrates a multi -agent research workflow: 1. Decomposes the research question into sub -questions 2. Dispatches each sub -question to a ResearchAgent 3. Synthesizes results into a final report """
def __init__(self , research_agent_url : str , auth_token: str): self.research_client = A2AClient(research_agent_url , auth_token) self.workflow_id = str(uuid.uuid4 ())
async def run(self , research_question : str) -> str:
print(f"[Orchestrator] Starting workflow {self.workflow_id}") print(f"[Orchestrator] Question: { research_question }")
# Step 1: Decompose into sub -questions sub_questions = self._decompose( research_question ) print(f"[Orchestrator] Decomposed into {len( sub_questions )} sub -questions" )
# Step 2: Dispatch sub -questions in parallel tasks = await asyncio.gather (*[ self. research_client .send_task(
message=Message(role="user", parts =[ Part(type="text", text=q)]), metadata ={"workflowId": self.workflow_id , "subQuestion": i} )
# Step 3: Wait for all tasks to complete completed_tasks = await asyncio.gather (*[ self. research_client . wait_for_completion (task) for task in tasks ])
# Step 4: Check for failures failed = [t for t in completed_tasks if t.status.state == "failed"] if failed:
print(f"[Orchestrator] Warning: {len(failed)} sub -tasks failed")
# Step 5: Synthesize results findings = [] for task , question in zip(completed_tasks , sub_questions ):
if task.status.state == "completed" and task.artifacts:
summary = task.artifacts [0]. parts [0]. text findings.append(f"### {question }\n{summary}")
report = self._synthesize(research_question , findings) print(f"[Orchestrator] Workflow complete. Report: {len(report)} chars") return report
def _decompose(self , question: str) -> list[str]: """Decompose a complex question into focused sub -questions.""" # In production: use an LLM to decompose return [
f"What are the foundational methods for: {question }?", f"What are the most recent advances in: {question }?", f"What are the open challenges and limitations in: {question }?" ]
def _synthesize(self , question: str , findings: list[str]) -> str: """Synthesize sub -findings into a coherent report.""" # In production: use an LLM to synthesize sections = "\n\n".join(findings) return f"# Research Report: {question }\n\n{sections}"
# -- Entry Point ---------------------------------------------------------------
async def main ():
orchestrator = ResearchOrchestrator (
research_agent_url ="https :// research -agent.example.com/a2a", auth_token=" eyJhbGciOiJSUzI1NiJ9 ..." ) report = await orchestrator.run( " Reinforcement learning from human feedback for large language models" ) print(report)
if __name__ == "__main__":
asyncio.run(main ())
23.10 Summary
Key Takeaways: Agent-to-Agent Communication
1. A2A enables specialization at scale: By routing tasks to specialist agents, multiagent systems achieve depth and breadth simultaneously. (Chapter 24 covers multi-agent architectures in depth.)
3. Communication patterns range from simple request-response to complex negotiation and auction-based allocation--choose based on task complexity and latency needs.
4. A2A and MCP are complementary: A2A connects agents to agents; MCP connects agents to tools. Most production systems use both.
5. Security is non-negotiable: Agent identity verification, authorization scopes, and audit trails are essential in any multi-agent deployment.
6. Coordination protocols (Contract Net, Blackboard, Consensus) provide structured mechanisms for collective decision-making beyond simple delegation.
7. Observability through correlation IDs is critical for debugging and auditing complex multi-agent workflows spanning many agents and tools.
Open Research Questions in A2A
• How should agents handle conflicting instructions from multiple orchestrators in a hierarchy? What conflict resolution mechanisms are most effective?
• Can agents learn better routing and delegation strategies through experience, rather than relying on static capability declarations?
• How do we prevent prompt injection attacks where a malicious agent manipulates a downstream agent by embedding adversarial instructions in its messages?
• What are the right privacy boundaries for context passing--how much conversation history should a sub-agent see, and how do we enforce these boundaries technically?
• As agent networks grow to hundreds or thousands of agents, how do we maintain coherent global state without creating bottlenecks or consistency violations?
Chapter 24
